Weight:

1284.8+/-25g (With Extralight Rims, Carbon Spoke Hub & Carbon Spoke)

Material:

Extralight: 50% T700 + 50%T800 carbon Fiber
Premium: 80% T700 + 20%T800 carbon Fiber
Standard: Full T700 Carbon Fiber

Available Size:

700C

External Width:

31mm

Inner Width:

24mm

Depth:

39mm

Rim Type:

Clincher

Max Spoke Tension:

130kgf

Max Rider Weight:

Premium/Standard: 120kgs;
Extralight: 95kgs

Max Tire Pressure:

100psi

Hole Count:

28H/28H, 32H/32H

Weave:

UD/3K/12K

Finish:

Matte/Glossy

Tubeless Compatible:

Yes

Application:

All Road

Technologies

Coating Free

This is BTLOS' most advanced manufacturing process. Due to high-quality carbon fiber and specially formulated epoxy (resin) along with state-of-the-art molding and manufacturing techniques, BTLOS rims come out of the mold without blemishes or defects in their finish eliminating the need for painting and/or clear coating and also saving weight.
USED FOR: Premium Series

Smooth Inside Wall

The traditional inflatable bladders used by many manufacturers to maintain the rim's shape during the molding process lack the ability to closely control the final shape of the rim. As a result, although most carbon rims appear smooth and seamless on the outside, they are marked by irregularities and weaknesses on the inner surface of the rim. Each irregularity is a potential point of failure.
Using a molding process we call ''SLW'', BTLOS employs proprietary high-pressure bladders and specific solid silicone forms to tightly control rim shape, producing virtually void-free rims with perfectly smooth walls (inside and out) resulting in finished rims that are truer, lighter, stronger, more durable rims and wheels.
USED FOR: Premium Series

Spoke Hole Angles

BTLOS can drill spoke hole angles to match or compliment the spoke angles created by the hub flange (as provided by the customer). Matching the spoke hole drilling angle in the rim to the spoke angle of the hub/hub flange allows the nipple to be better aligned with the spoke when the wheel is tensioned resulting in fewer broken spokes and nipples.
USED FOR: Premium Series / Standard Series

Graphene Special Braking Surface

By incorporating graphene into our design we are able to increase braking power by 50% in all conditions while limiting heat build-up to less than 150 degrees. These improvements lead to a more durable, stronger brake track along with improved braking performance in wet conditions and during long descents. Our new brake track can also include a patterned surface specific to customer requirements or specifications. (OEM service available). Learn More
USED FOR: Premium Series

Super High TG Braking Surface

Extremely high heat resistance at the brake, testing TG values up to 250 degrees at 100pis test conditions. Ordinary rim TG can only reach 180 degrees.
USED FOR: Premium Series / Standard Series

One-Piece Molding

Since the rims do not have the weaknesses associated with the various components of any of the different designs, they are continuously molded using techniques known as "one-piece molding". Because of this, the rims are perfectly symmetrical and evenly rolled.
USED FOR: Premium Series / Standard Series

High TG Epoxy Resins

BTLOS uses the highest TG epoxy resin to increase rim resistance to high temperatures created under braking. Our exclusive nano-resin formula combined with Toray's new ULTRA series products guarantee that the rims are resistent to heat build up and that they retain 100% of their rigidity regardless of the conditions while also saving weight vs. traditional TG resins.
USED FOR: Premium Series / Standard Series

Twine Tec

Twine technology can solve the problem of using a material with insufficient ductility to produce a full three-dimensional surface product that is prone to local tearing or wrinkling of the material. This will ensure even balance of weight and strength around the circumference of the rim.
USED FOR: Premium Series / Standard Series

ISO-Etrto Compliant

Internationally standardized tire bead and rim sizing. This ensures that the fit and relationship between a rim and a tire are as secure as possible.
USED FOR: Premium Series / Standard Series

Outstanding Materials

The finest carbon sheets are selected based on years of knowledge and experience. Superior workmanship is executed and ensured by well-trained factory staff.
USED FOR: Premium Series / Standard Series

3D Drilling

A computer controlled drilling machine ensures accurate drilling that can be replicated time after time.
USED FOR: Premium Series / Standard Series

U shape

Modern more rounded U shape profile has enabled aerodynamics, which means improved traction while reducing the rolling resistance.
USED FOR: Premium Series / Standard Series

Tubeless Compatible

It is suitable for tubeless tires. This makes it possible to achieve a smaller overall system weight while improving puncture resistance. The precision diameter achieves a reliable tubeless performance.
USED FOR: Premium Series / Standard Series

Hookless

Carbon fibers continuously flow in the bead area to provide an optimal impact resistance and a significant increase compared with the intensity of the clincher rim.
USED FOR: Premium Series / Standard Series

Asymmetric

Unique asymmetrical profile, create a more durable wheel. Asymmetric rims and symmetrical rims look similar. But asymmetric rims of the spokes/nipple holes are off center. This more uniform wheel spokes tension configuration, to constitute a stronger, more robust, more reliable wheel.
USED FOR: Premium Series / Standard Series

Bead Lock

The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.
USED FOR: Premium Series / Standard Series

Sapim CX-Ray

The CX-Ray Spokes receives the best results in fatigue testing of any spoke. The CX-Ray spokes fit all standard hub holes.
USED FOR: Premium Series / Standard Series

Hand-Built

All BTLOS wheels are 100% hand built to exacting standards by well trained wheel builders using only the best available components. All of our wheels are rigorously tested to guarantee accurate spoke tension and precise truing.
USED FOR: Premium Series / Standard Series

Two Carbon Fiber Types

Rims made from different types of carbon fibers may thus be characterised by greater stiffness and strength. Therefore, in order to provide you with the best possible rims, we use two different types of carbon fiber (Toray T700, Toray T800) in the production of BTLOS rims. BTLOS premium rims are a combination of T700 and T800 carbon fibers.
USED FOR: Premium Series / Standard Series

Spoke Tension Chart

While creating the BTLOS wheelset, we focused on every detail in the quality control process. We hope that you can receive the perfect wheels! BTLOS seeks to provide you with as much information as possible about your new wheels. Therefore, we offer you a tension chart which is specifically your copy.
USED FOR: Premium Series / Standard Series

Secure Lock

The newly patented Secure Lock nipple of Sapim is a locking mechanism that prevents nipples from untightening. As a result, the nipples do not loosen during riding, and thus the wheel remains perfectly centered and rigid for a longer time.
USED FOR: Premium Series / Standard Series

Extra Carbon Fiber Strip

Around the spoke holes, each rim is reinforced with an extra carbon fiber rod. Its precise arrangement allows for the greater tension of the spokes, which results in a high rigidity of the rims.
USED FOR: Premium Series / Standard Series

Wide U-Shape Rim Profile

The oval and broad cross-section provides maximum aerodynamic efficiency and stability of the rims even with a strong side wind.
USED FOR: Premium Series / Standard Series

Quality Control Systems

We believe the reliability, and consistent quality of our products has the best value in the industry. In order to ensure that BTLOS rims not only meet international safety requirements but also comply with additional, higher quality standards, we use SGS and EN 14781 standards when manufacturing rims.
USED FOR: Premium Series / Standard Series

Double Triangle Design

The BTLOS bead seat/sidewall interface is created for the tire bead based on the structural advantages of a triangle. This solution increases the strength and ability of the of the rim to withstand impact. Further, the triangular shape of this design also ensures the stability of the rim sidewall under hard braking while delivering excellent strength-to-weight performance.
USED FOR: Premium Series / Standard Series

Ultralight Construction

BTLOS applies firsthand knowledge and research, along with industry-leading materials and technologies to create rims and wheels that are optimized to deliver extremely light weights without sacrificing the strength and durability demanded by the world's best riders.
USED FOR: Premium Series

Flatness And Roundness

BTLOS employes molding and manufacturing techniques which allow us to control rim flatness to within 0.15mm and roundness to withing 0.2mm making it incredibly easy to build perfectly true, strong wheels.
USED FOR: Premium Series

Stiffness

BTLOS considers the intended application of each rim design, tailoring the relative stiffness of our rims to achieve maximum power transfer.
USED FOR: Premium Series / Standard Series

45 Degree Overlap

A lay-up process where by carbon layers are stacked/overlapped at 45-degree angles creating very high lateral stiffness and improved impact resistance while maintaining responsiveness and efficiency under power.
USED FOR: Premium Series / Standard Series

Single Wall Design

Our fat bike rims utilize single wall construction allowing them to minimize weight while maximizing strength and stiffness to deliver a stable ride.
USED FOR: Premium Series

CNC Cutting Material

Computer Controlled machinery is used to plan, format and cut carbon sheets in order to achieve the most efficient use of materials and to control costs while also making measurements and cuts controlled within 0.1mm allowing us to deliver outstanding lay-up consistency on each and every rim we build.
USED FOR: Premium Series / Standard Series

Wider Tire Profile

Rims designed to work well with the wider tire profiles often preferred for CX bikes, Gravel bikes, and Road Disc bikes. The wider profile offers improved aerodynamics, and better crosswind performance while also allowing a more even surface area (on tubular rims) for improved gluing of tubular tires.
USED FOR: Premium Series / Standard Series

Aerodynamic Profile

Improved aerodynamic design for a better crosswind protection.
USED FOR: Premium Series / Standard Series

Related Products

VALVE-STEM

Bicycle tubeless rim valve stem

Rims Depth Recommended Tubeless Valves Length under 26mm 35mm ..

$7.00

TRT01

Tubeless rim tape

The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims...

$6.00

MTB Valve stem and tape installation service

VTIS

MTB Valve stem and tape installation service

MTB Provide a pair of valve stems and a roll of tape, and install them on the wheel set you bought...

$15.00

ARC39

ARC39 24mm Inner Width 39mm Depth All Road Disc Carbon Rims

BTLOS All Road series 24mm inner width 39mm depth rims specifically made for disc brakes. Featuring a disc specific carbon construction, and..

$185.00

Tags: all road, disc brake, adventures, wider tires, road disc brake rim, 39mm depth

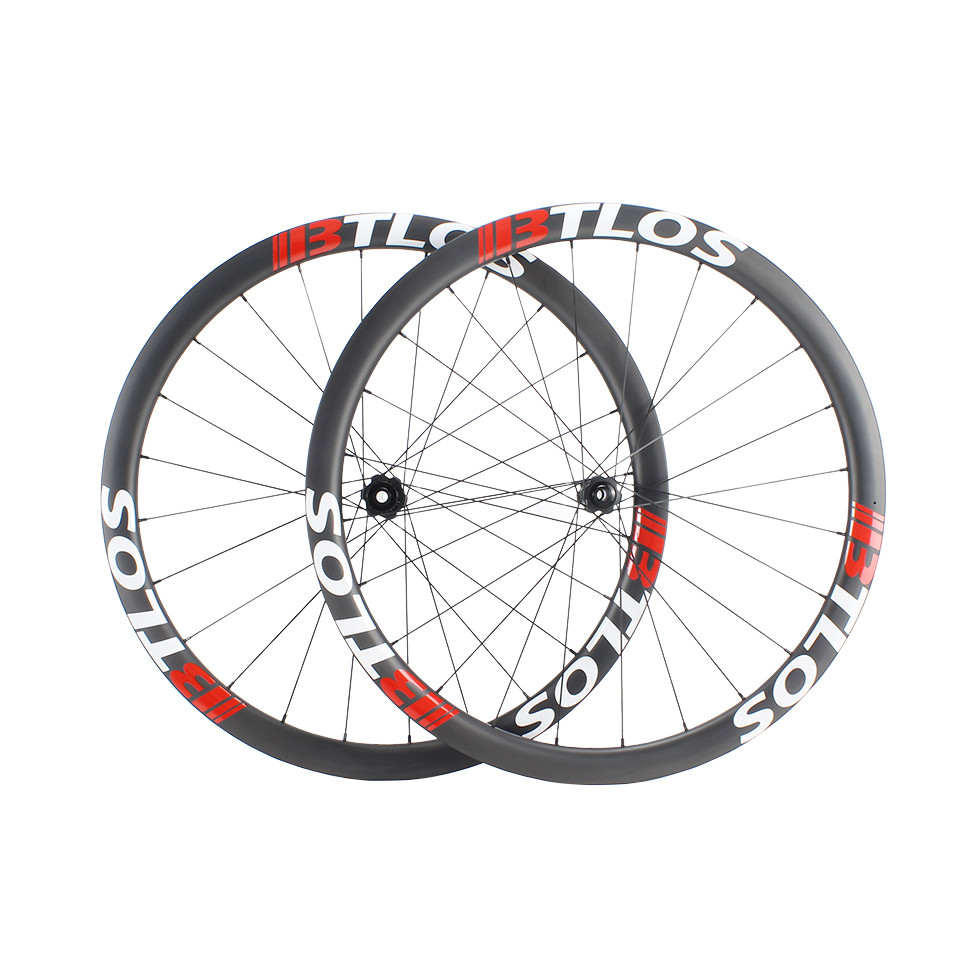

All Road 24mm Inner Width 39mm Depth Clincher Carbon Wheelset
