  • GXL40W

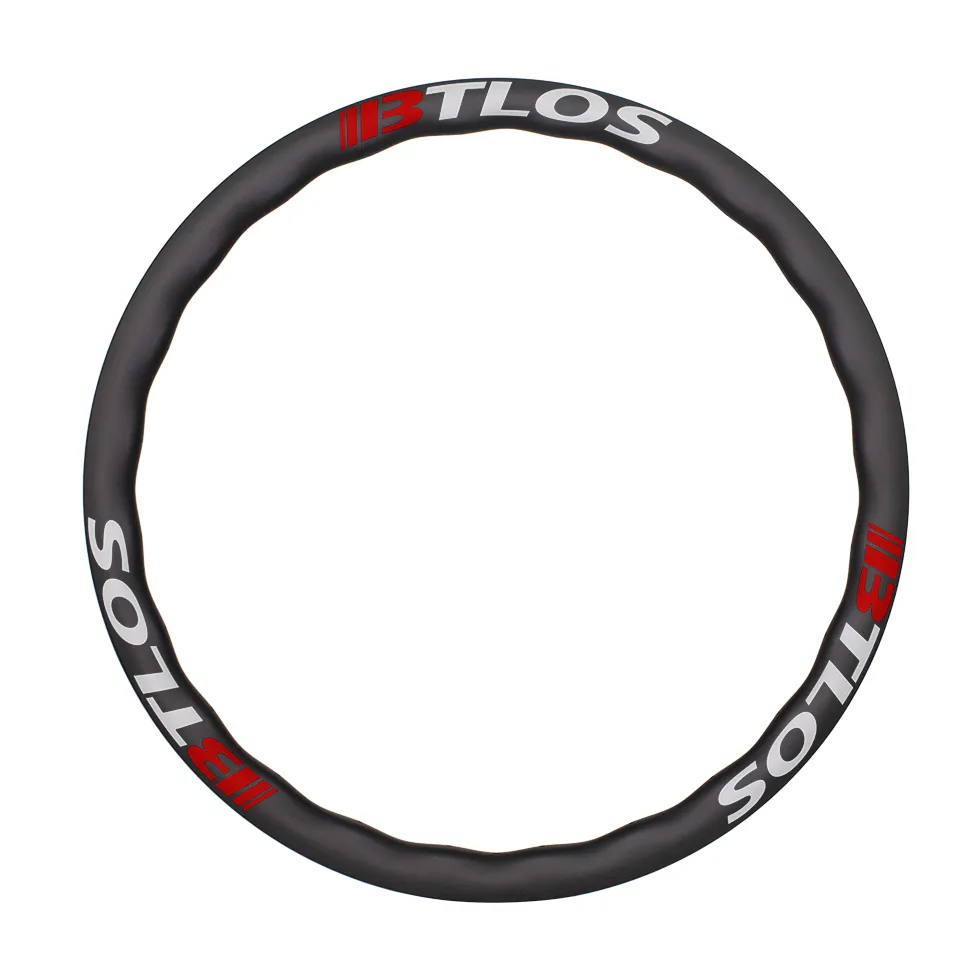

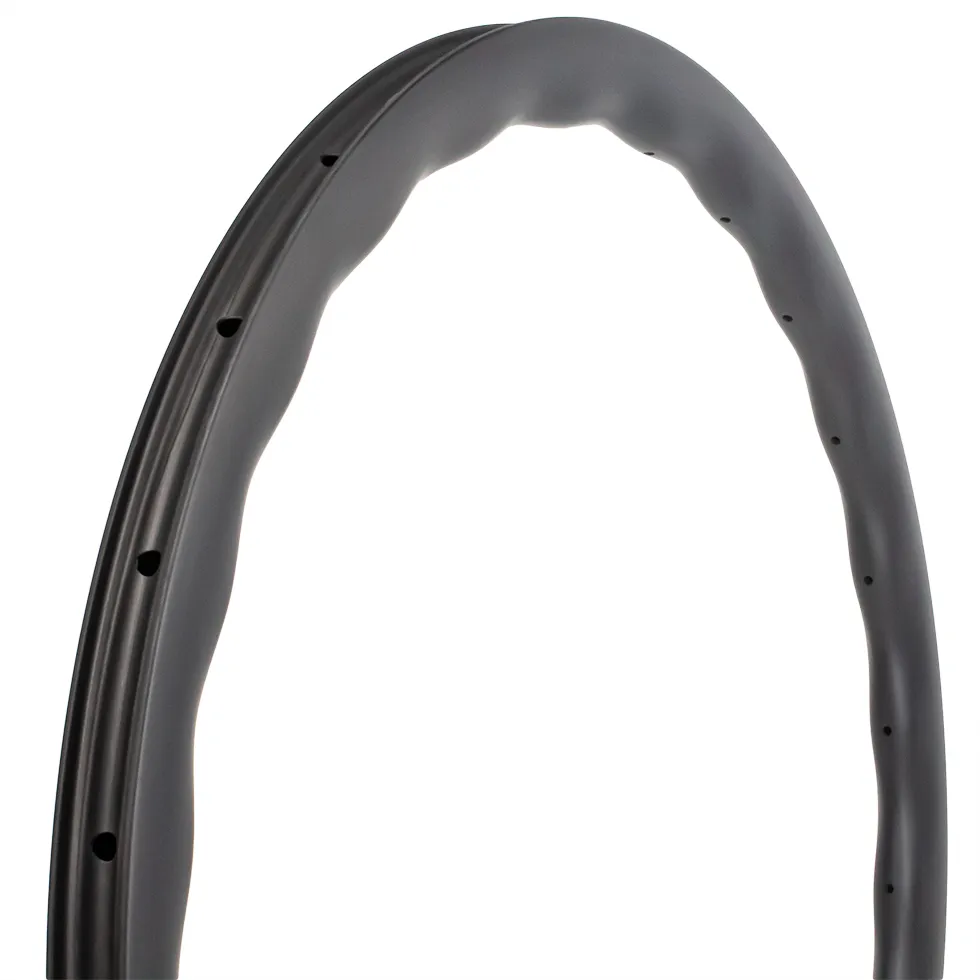

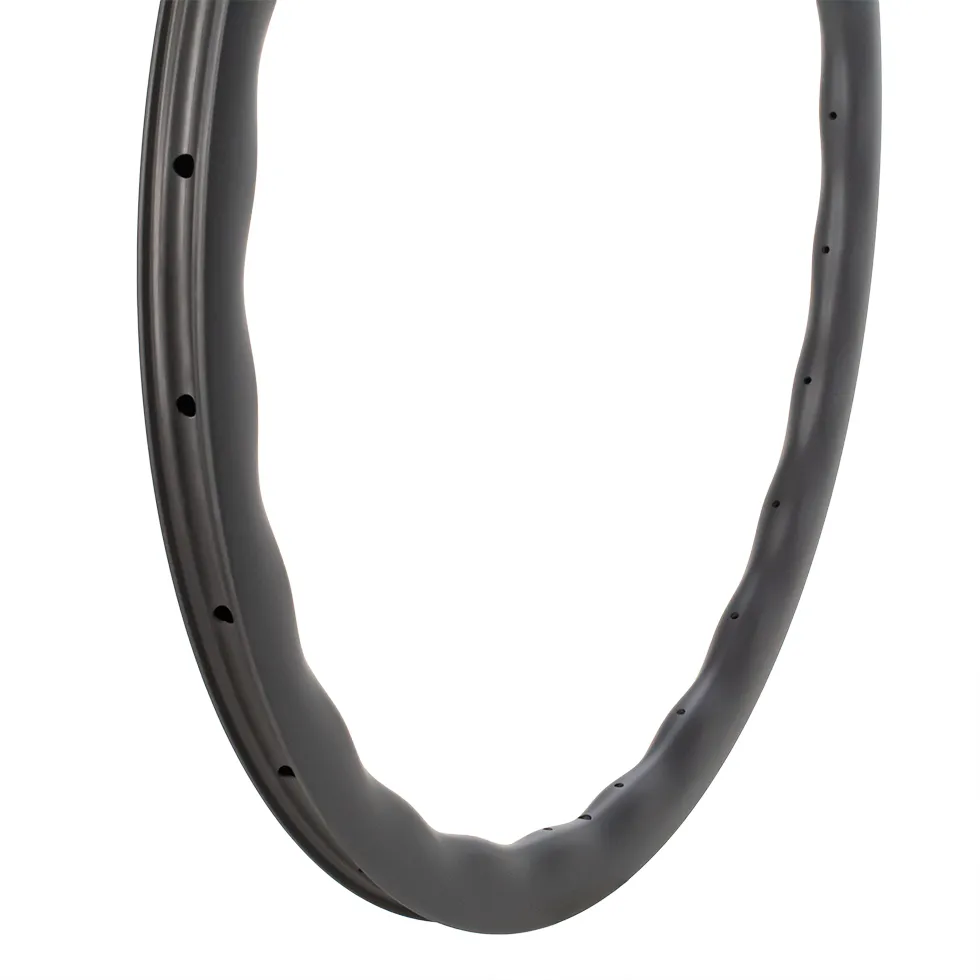

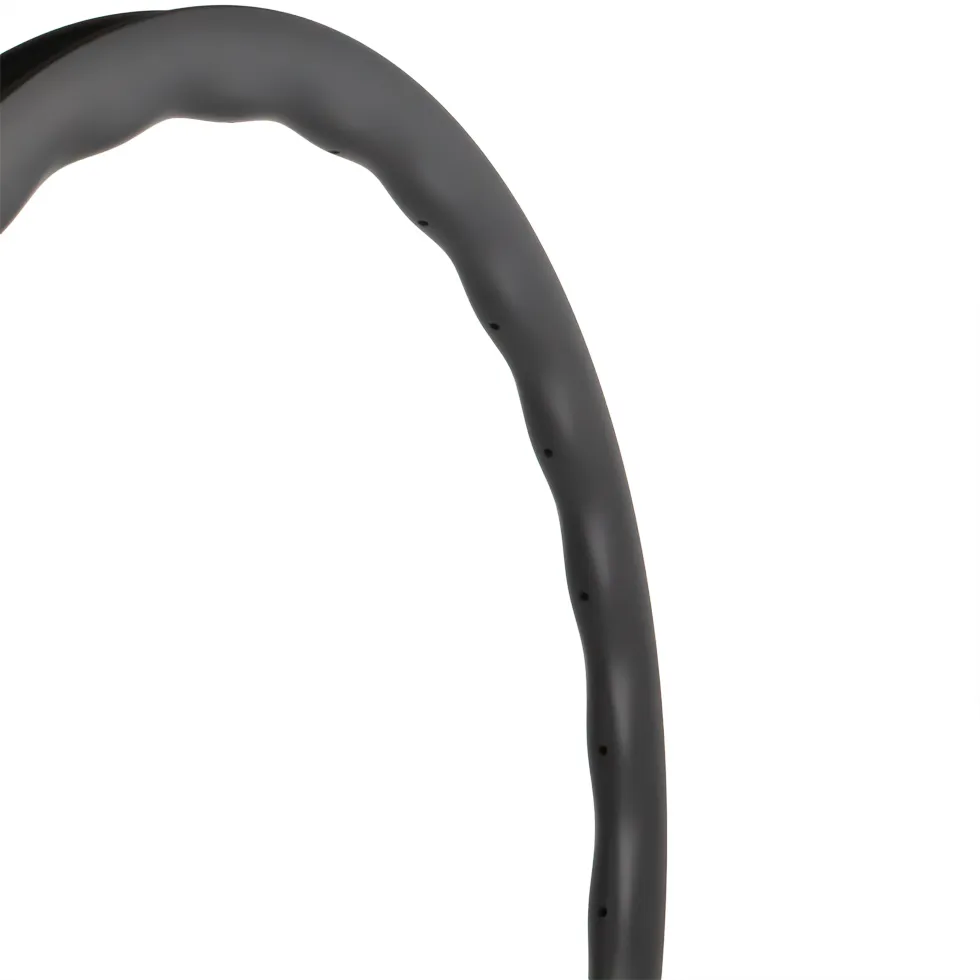

GXL40W Gravel Disc Brake Hookless Wavy Rim

  • Starting at:
  • 170.00 USD

The GX40W is designed for mixed gravel and CX, Dirt use.
Rim depth is 40mm and external rim width is 29mm, Hookless design provides better stability and control for faster speeds.
The latest ''wave'' profile enhances aerodynamics and lateral stiffness.

Premium/Standard:
BTLOS offers 2 constructions options for each of our rims. For cost-conscious buyers, we offer our Standard Construction which is available at lower costs and with a 1.5-year warranty for manufacturing defects. For buyers who are looking for the most advanced technology and performance, we offer Premium Construction. Premium Construction makes use of only Toray T700/T800 carbon and utilizes Smooth Inside Wall technology. Premium rims weight approximately 10g~30g less (per rim) than their Standard counterparts and Premium rims are backed by a 3.5-year warranty against manufacturing defects. Learn More...

GXL40W cross section drawing
Weight:
Extralight:380g +/- 15g;
Standard: 435+/-15g;
Premium: 415+/-15g;
Material:
Extralight: 50% T700 + 50%T800 carbon Fiber
Premium: 80% T700 + 20%T800 carbon Fiber
Standard: Full T700 Carbon Fiber
Available Size:
700C
ERD:
559mm
( Does not include the nipple )
External Width:
29mm
Inner Width:
21mm
Depth:
40mm / 35mm
Rim Type:
Clincher (Hookless)
Max Spoke Tension:
130kgf
Max Rider Weight:
Premium/Standard: 120kgs;
Extralight: 95kgs
Max Tire Pressure:
70psi
Hole Count:
24H
Weave:
UD/3K/12K
Finish:
Matte/Glossy
Tubeless Compatible:
Yes
Application:
Gravel, Cyclocross
Decal:
Customized
